Ball Bearings
Ideal for high-speed and high-precision applications with moderate load requirements, Axis ball bearings are engineered to reduce friction and deliver smooth, reliable performance across a wide range of industries and applications.

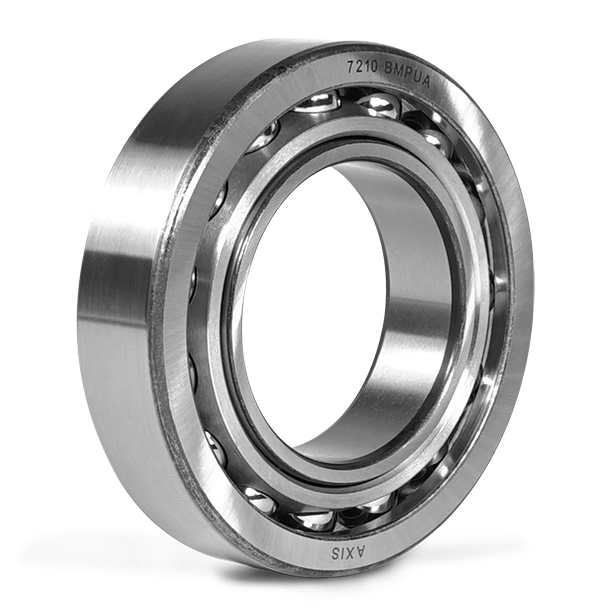

Angular Contact Bearings
7200 | 7300 | 7400 Series
Angular contact bearings support both radial and axial loads, primarily in one direction. Optimized for high-speed performance, rigidity, and precision, they’re often arranged in pairs to manage combined loads in machine tool spindles, precision pumps, gearboxes, and automated equipment. They’re the ideal choice for any application where exact alignment and stiffness are critical.
ABEC 5-rated for higher rotational precision and reduced vibration compared to standard grades.
Honed raceways and Grade 10 steel balls deliver longer life and smoother performance under axial loads.
Precision-machined retainers support high-speed, high-load performance; choose brass for better heat dissipation or steel for added strength.
Forged steel rings improve fatigue resistance and dimensional stability at high speeds.
Universally flush ground for duplex mounting options; 40° contact angle maximizes thrust capacity.
Download CAD Models
Generate 3D models and 2D drawings that are ready to drop into your design.
